QNAP is a globally recognized storage manufacturer that produces Network Attached Storage (NAS) with high scalability and reliability. A company has a strong supply system that allows it to handle design, development, manufacturing, and quality control all in-house. QNAP is well-known in Taiwan, surrounding Asian countries, Europe, and North America, with a user base exceeding 7 million worldwide.
| Features | Model Name |
|---|---|
|
12th generation Intel Core multi-core Multi-thread processor Featuring an M.2 2280 PCIe slot |
TVS-h874 |
| TVS-h474 | |
|
Intel Atom C5125 8 Core processor 2.5GbE Board with 8GB RAM |
TS-1655 |
|

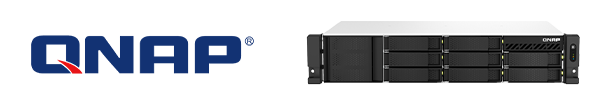

Intel 8 Core processor 2U Short-depth Rack-mount |
TS-855eU-RP |
|
AMD Ryzen quad-core processor High-performance rack-mount model with 2.5GbE port |
TS-873AeU-RP |
| Features | Model Name |
|---|---|
|

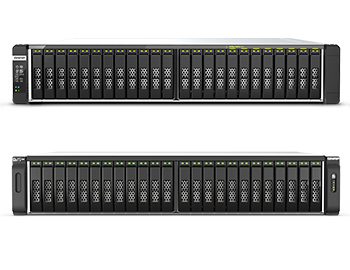

Dual-processor (2 x 8-core & 2 x 16-core) An NVMe all-flash ZFS storage configuration. |
TDS-h2489FU |
|
ZFS-based, 24-bay U.2 NVMe all-flash storage configuration. |
TS-h2490FU |
M.2 2280
More Information

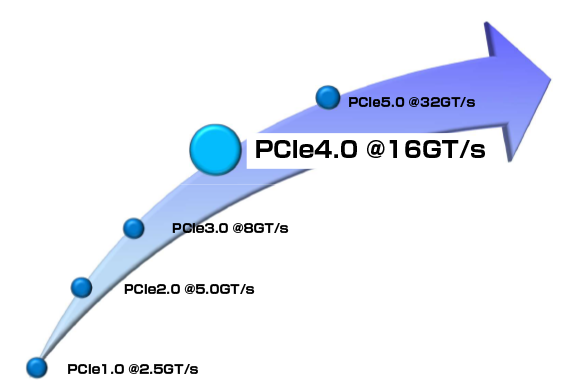

| Interface | PCIe Gen4 x 4 NVMe 1.4 | ||
|---|---|---|---|
| NAND | 3D TLC | ||
| Capacity | 960GB | 1,920GB | 3,840GB |
| Sequential Read/Write(MB/s) | 2,800/1,700 | 2,850/2,750 | 2,500/2,600 |
| TBW(TB) | 1,000 | 2,000 | 4,000 |
| Operating Temperature | Standard Temperature 0～70℃ Wide Temperature ‐40℃～85℃ |
||
Under Development

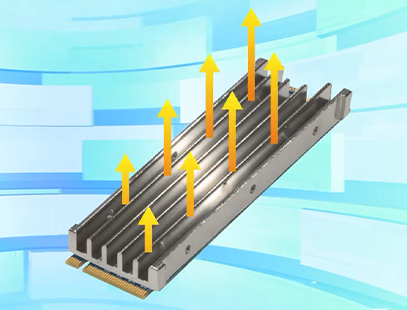

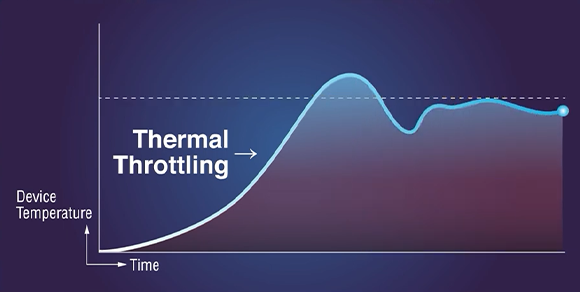

When SSDs are used for prolonged periods, such as during high-load data processing or continuous read/write operations, the internal flash memory chips and controllers may generate heat, potentially impacting performance. Heat sinks efficiently dissipate heat and help control the temperature increase of the SSD, thereby mitigating performance degradation during high-load usage.
U.2
More Information
| Interface | PCIe Gen4 x 4 NVMe 1.4 | ||
|---|---|---|---|
| NAND | 3D TLC | ||
| Capacity | 960GB | 1,920GB | 3,840GB |
| Sequential Read/Write(MB/s) | 3,000/1,700 | 3,000/2,900 | 3,000/2,900 |
| TBW(TB) | 1,000 | 2,000 | 4,000 |
| Operating Temperature | Standard Temperature 0～70℃ Wide Temperature ‐40℃～85℃ |
||
